Rocking horse made of plywood MRH1

0 ratings

Drawings for making a rocking horse from plywood on a CNC machine. Material - plywood 18mm.


overall height - 740mm

seat height - 485mm

length - 990mm

width -440mm

In the archive:

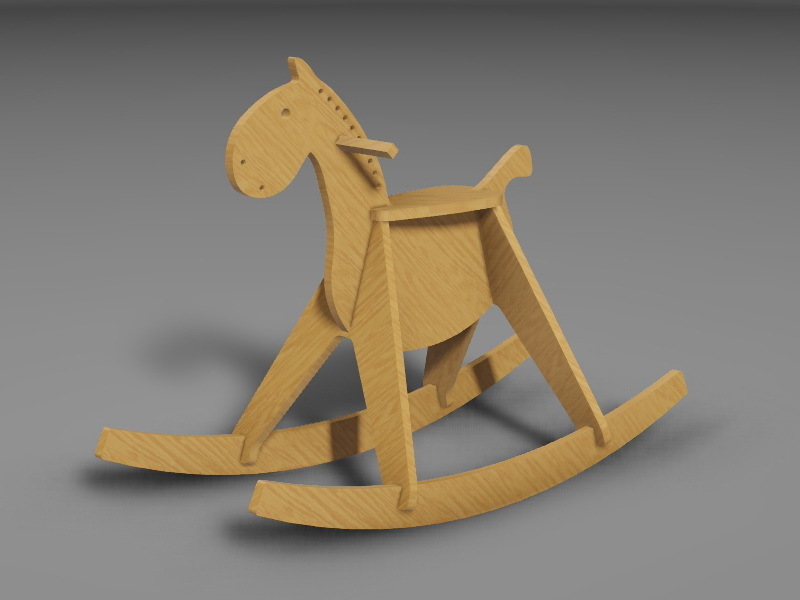

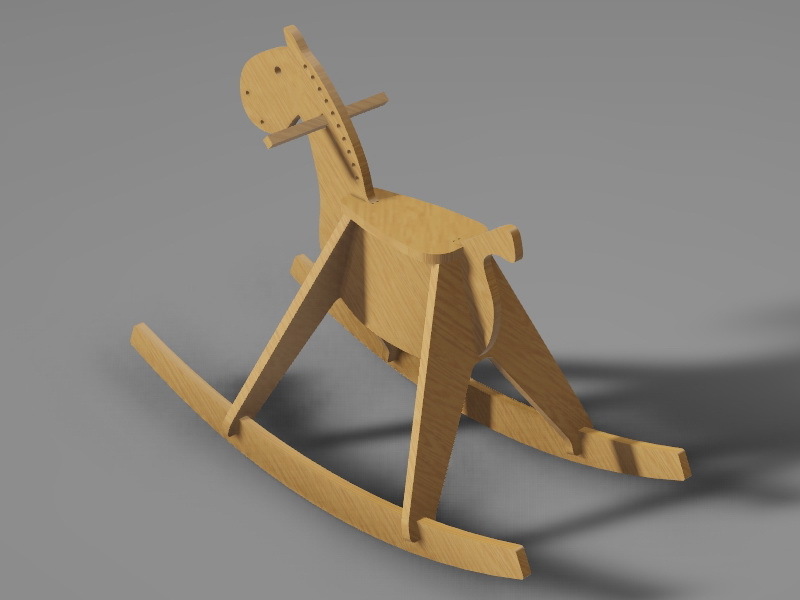

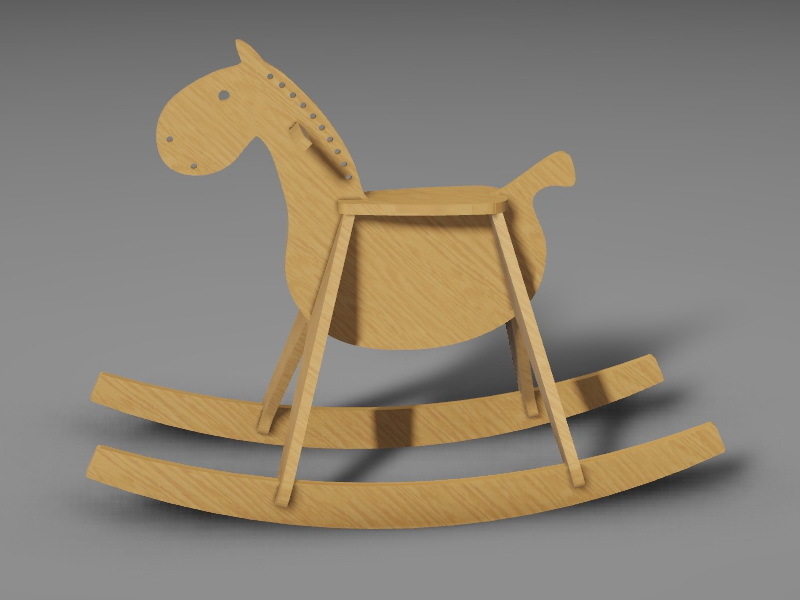

- visualizations

- detail drawings in pdf

- dxf file with outlines of parts

- a short description of the assembly and finishing

Difficulty: medium

Required tool: sander

Consumables: self-tapping screws, metal corner - 8-10 pcs, wood glue, abrasives, decoration materials (paints, varnish, twine, imagination)

Check the thickness of the plywood before cutting!

The set of drawings is presented as is. Designed for experienced users. Claims related to drawings, manufacturing process are not accepted.
