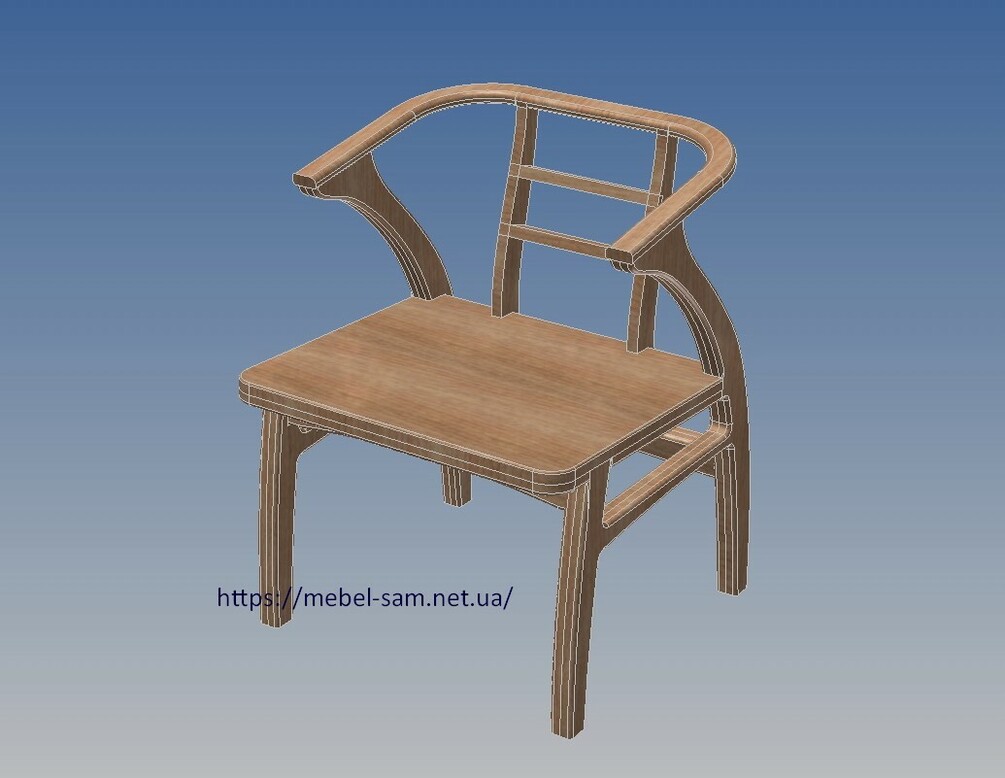

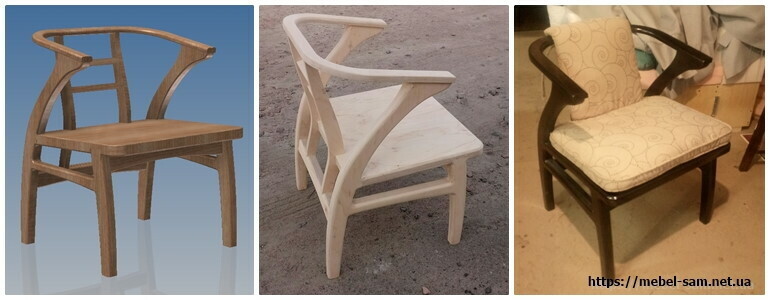

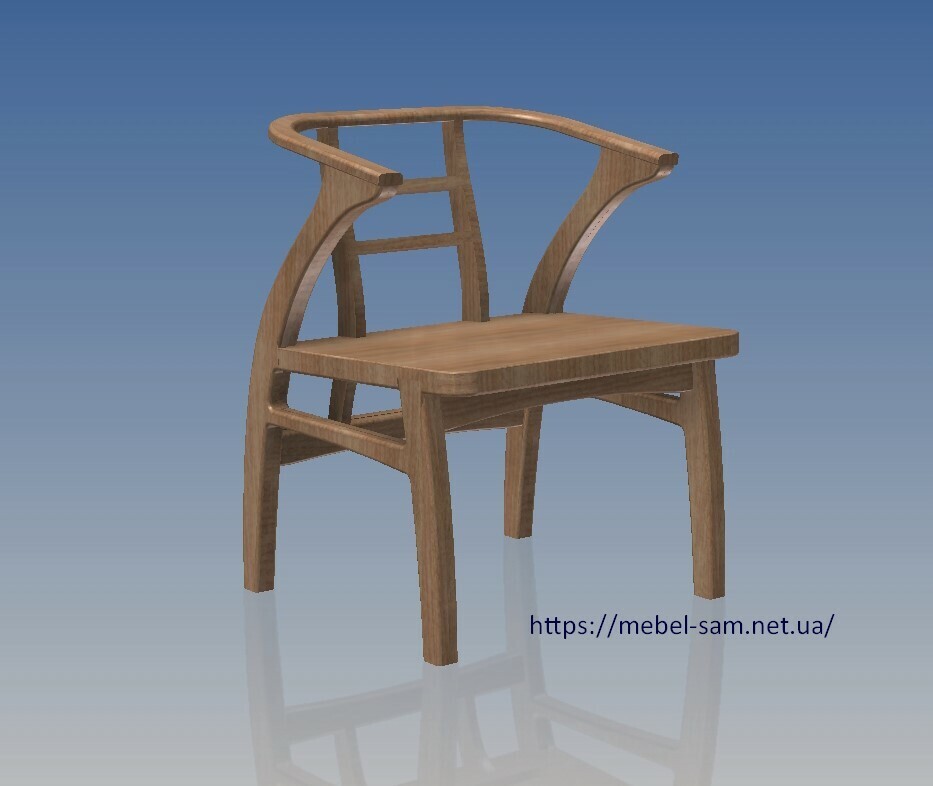

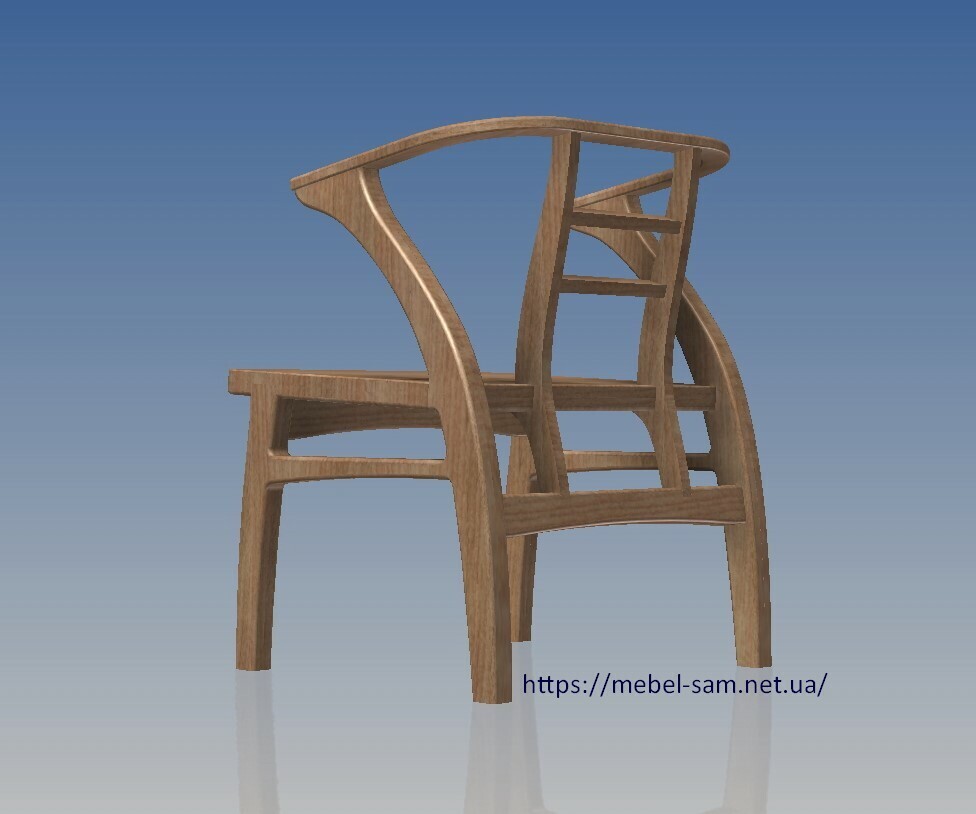

No. 133. Armchair made of plywood.

0 ratings
Add to cart

No. 133. Armchair made of plywood.

$20
AWBox
0 ratings

Drawings for the manufacture of chair-beds made of plywood on a CNC machine. Material - 18mm plywood.


Dimensions:

back height - 740mm

seat height - 422mm

length - 550mm

width -554mm

In the archive:

- visualizations

- drawings of parts in pdf

- drawings in pdf assembly

- dxf file with parts contours.

Level: Intermediate

Required tool: grinder, clamps, saw, milling cutter (optional).

Consumables: dowels 8 * 30mm, wood glue, sandpaper

Text in Russian

A set of drawings is presented as is. Designed for users with experience. Claims related to the drawings, the manufacturing process are not accepted.

Add to cart

No. 133. Armchair made of plywood. Drawings for the manufacture of chair-beds made of plywood on a CNC machine. Material - 18mm plywood.

Size
398 KB
