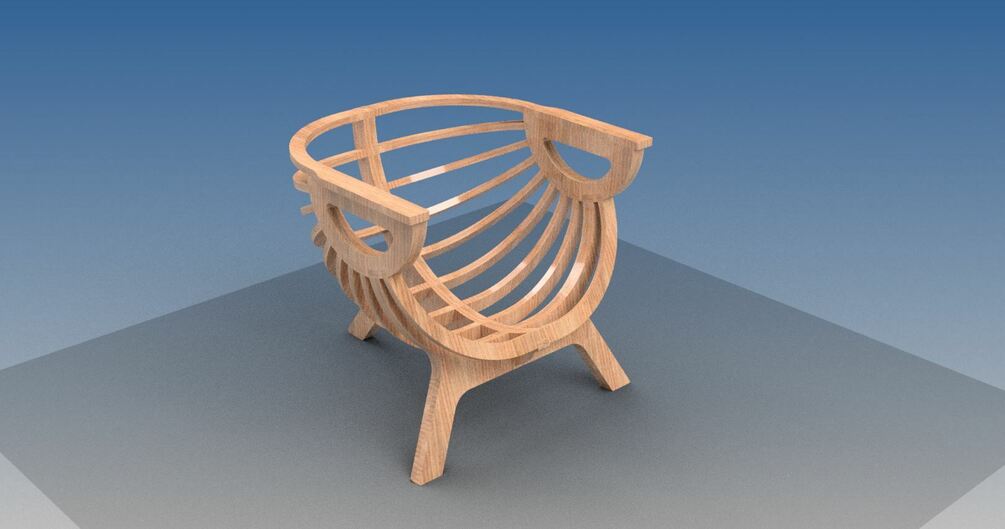

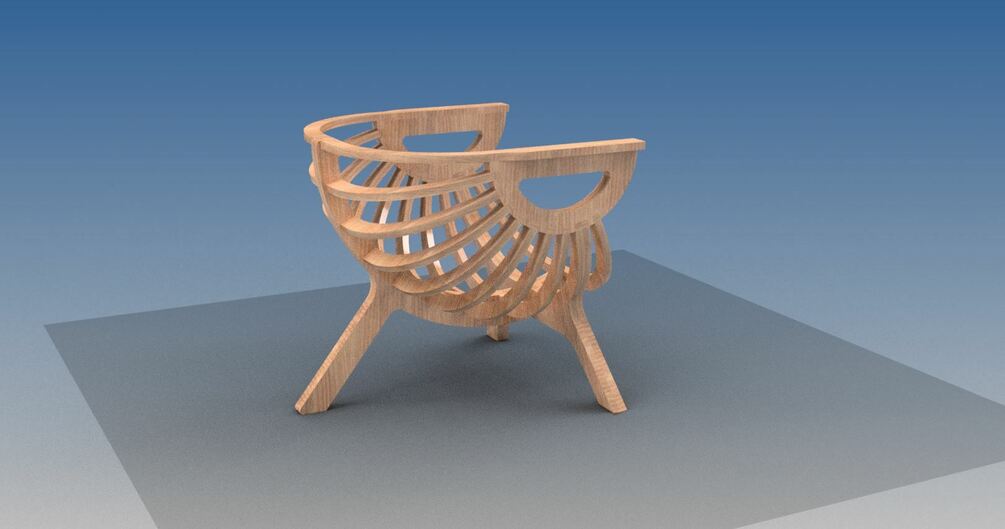

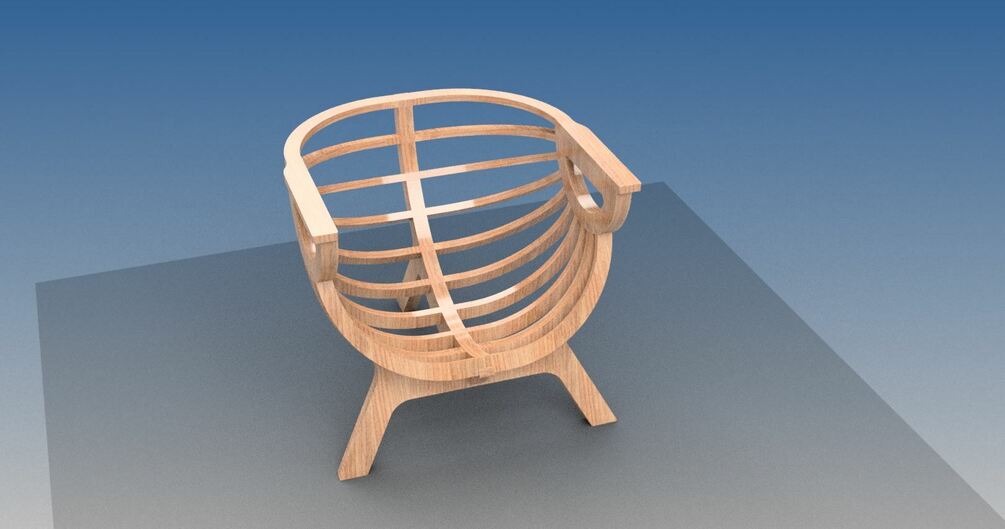

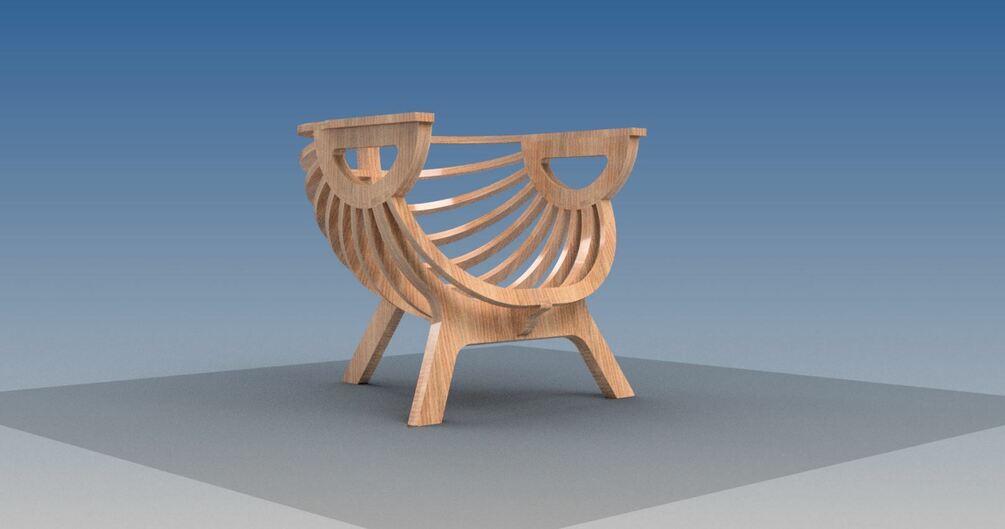

No.166. Armchair shell.

Drawings for the manufacture of plywood chairs on a CNC machine.

Material - 18mm plywood.


Height on the back / armrests - 659mm

Seat height - 280mm

Width - 736mm

Depth - 754mm

In the archive:

- visualization of the chair

- drawings in dxf

- drawing assembly

- manufacturing description

Difficulty: medium

Tools required: grinder, saw, milling cutter (optional).

Consumables: dowels 8 * 30mm, wood glue, sandpaper
