№206 Standing Desk

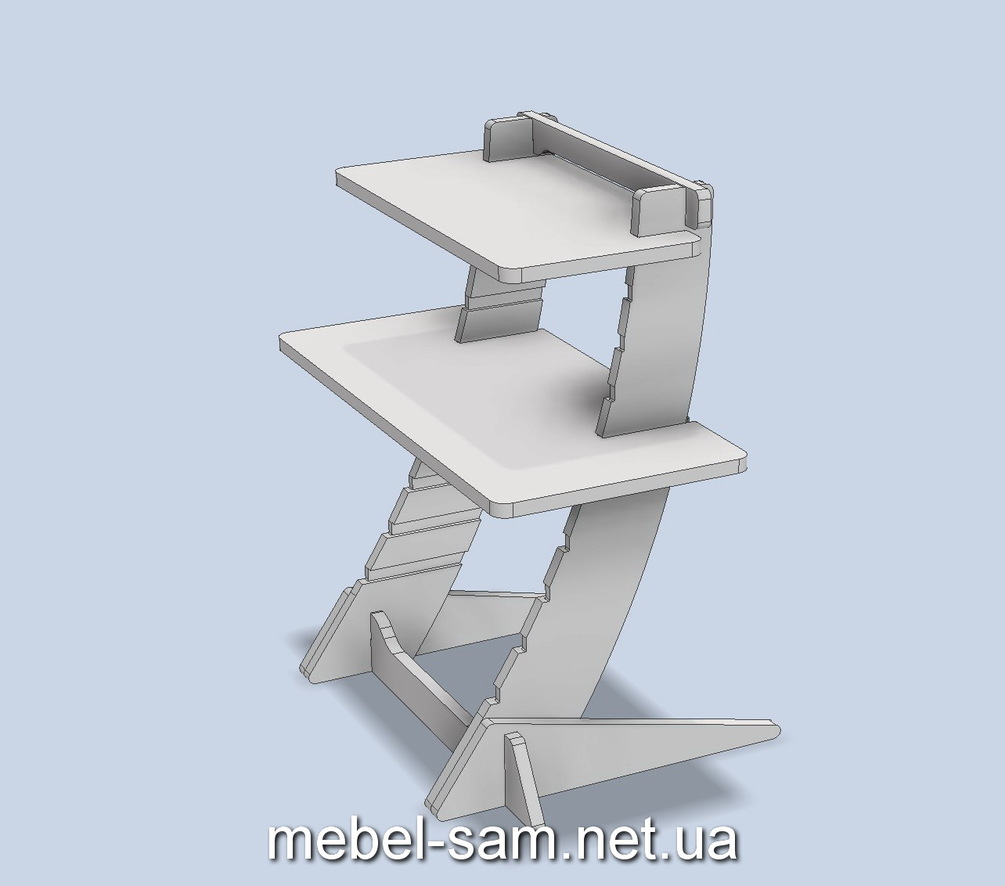

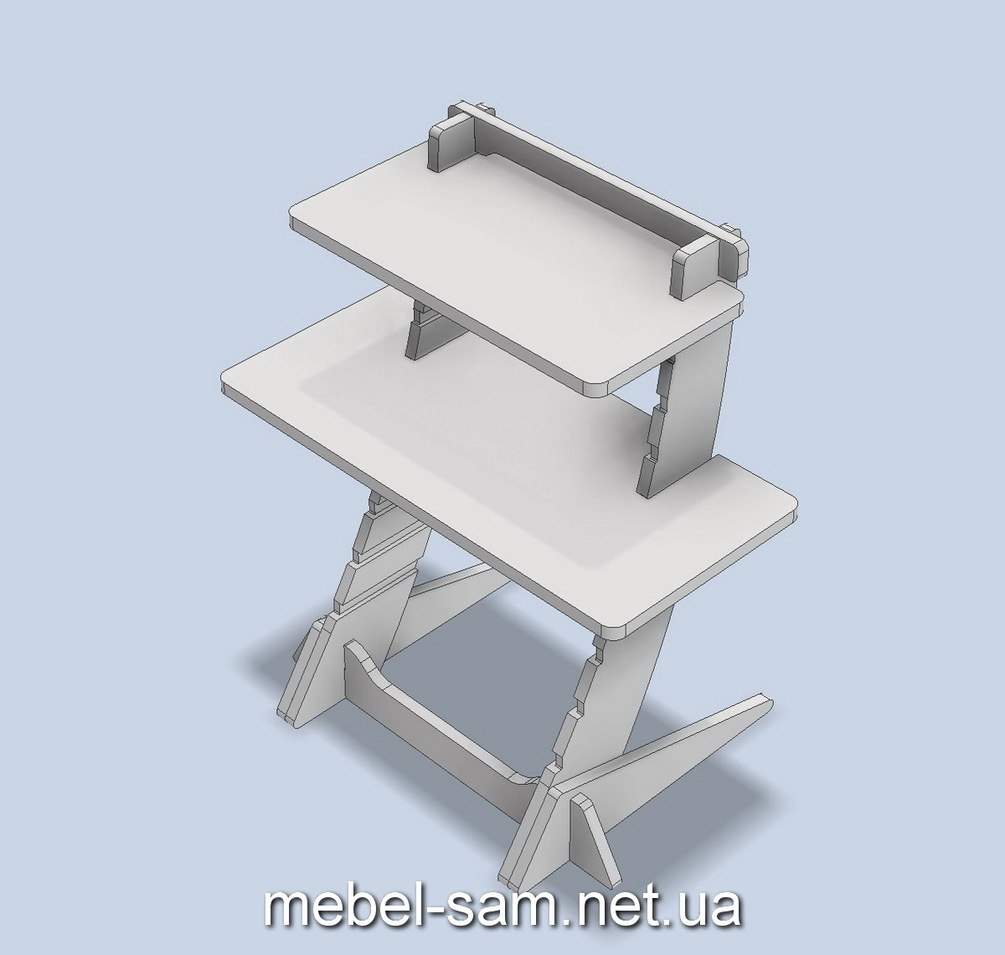

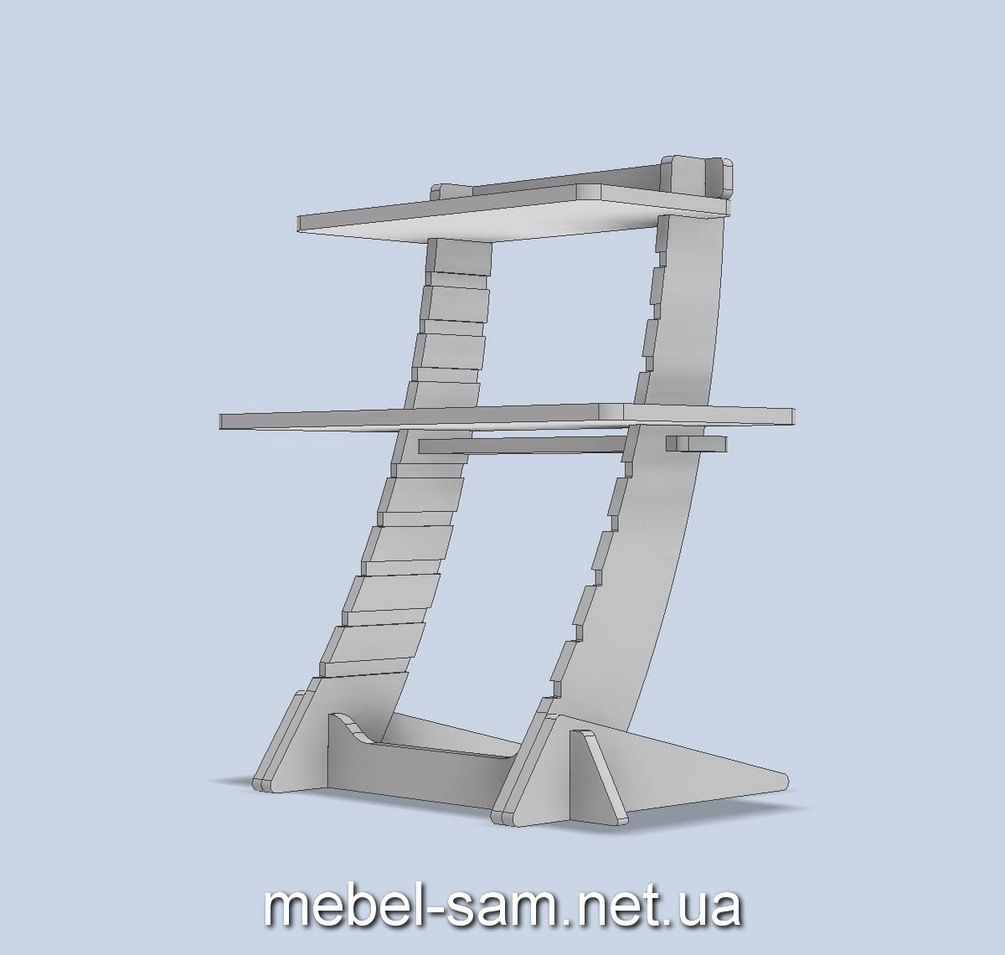

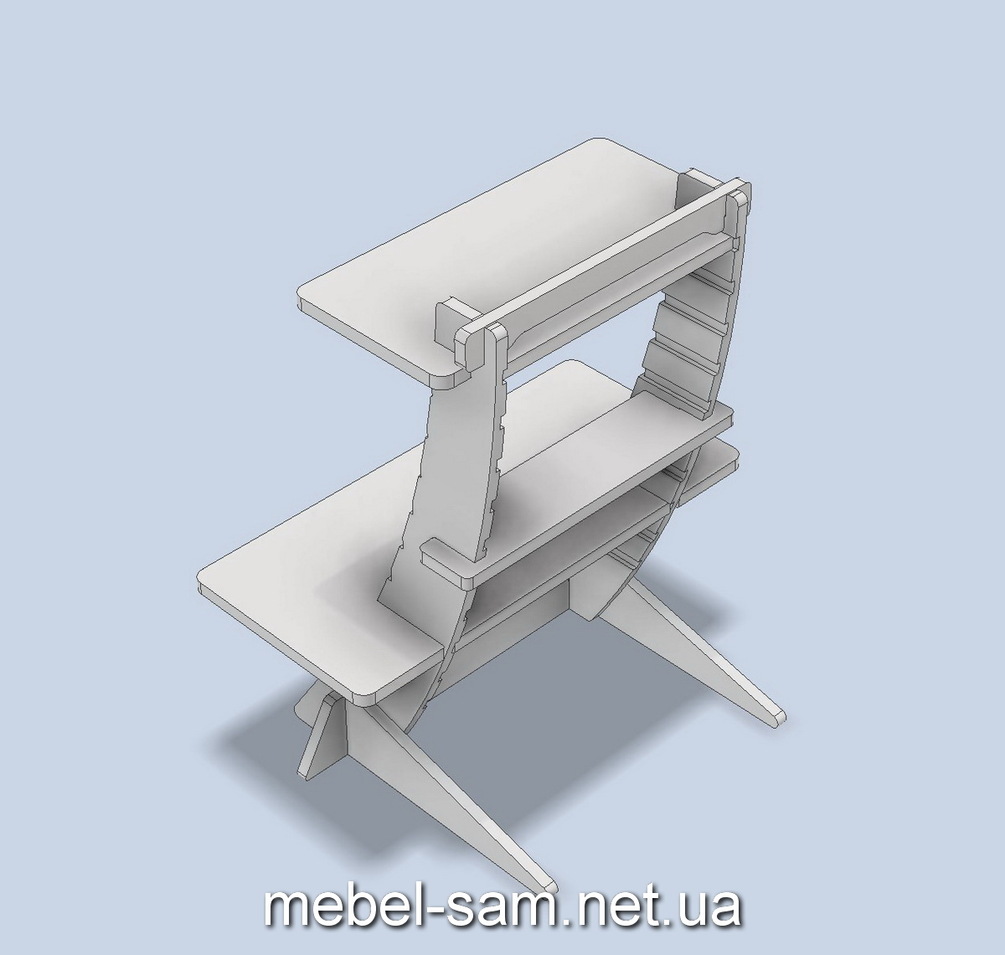

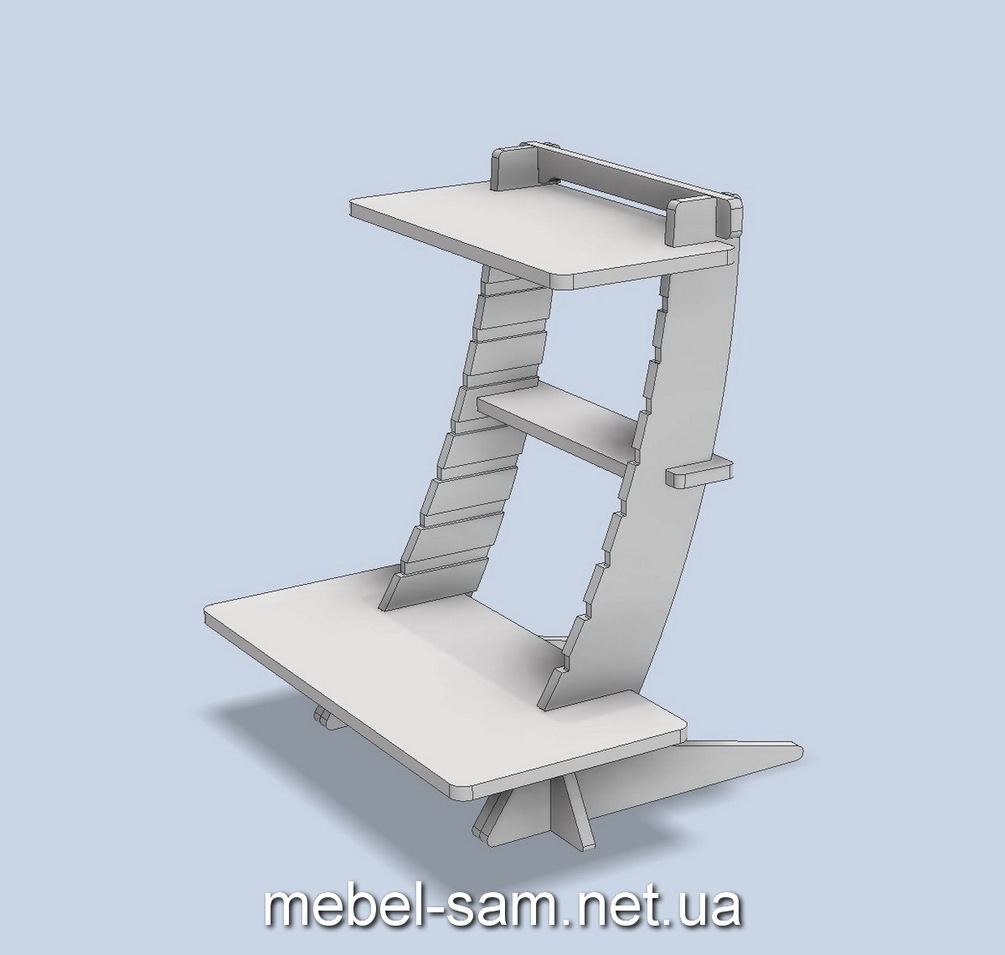

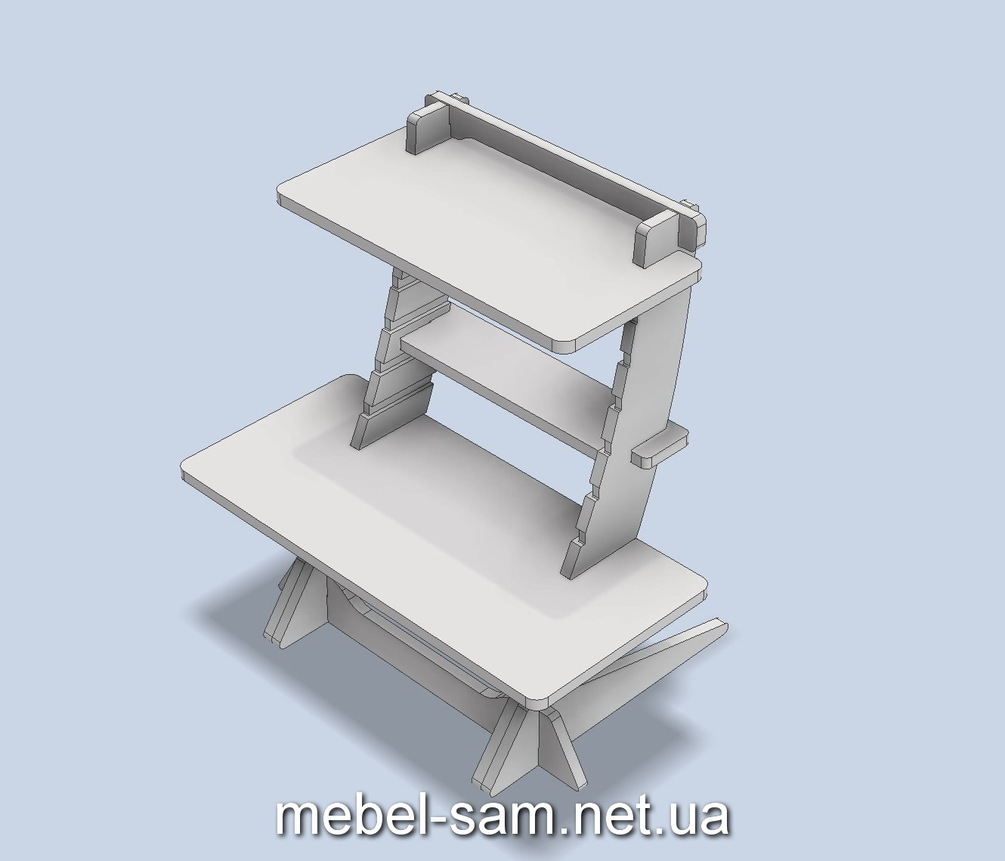

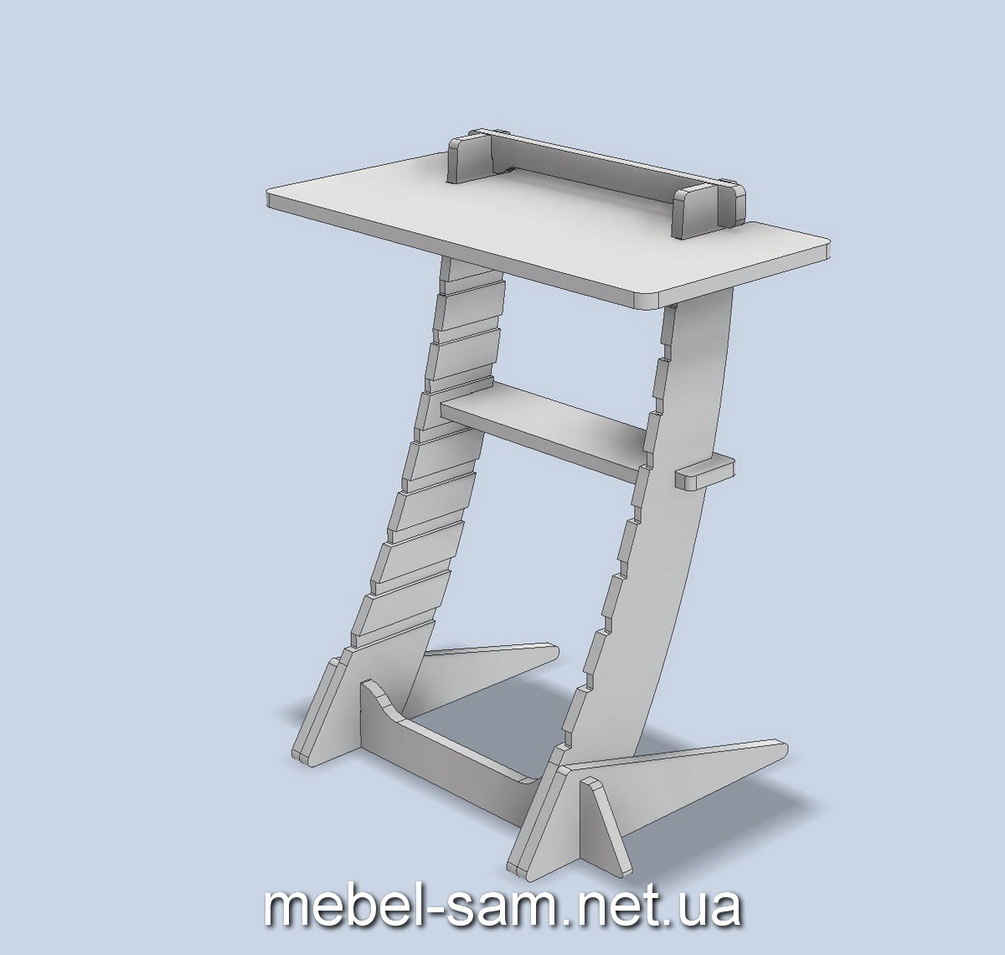

Set of drawings for making a table-stand from plywood using a CNC machine.

All parts are assembled by dovetail joints. No screws, glue, screws, or other tools are needed to assemble the table.

The table has two tabletops. The first tabletop is for a laptop or monitor. The distance between the table legs is 400mm, suitable for laptops with dimensions less than 400mm. The overall size of the tabletop is 540*266mm. The second tabletop is a working surface. The overall size is 720*340mm, the distance from the front edge of the tabletop to the table legs is 210mm (enough to accommodate most keyboards).

The maximum height of the upper tabletop is 712mm. Dovetail joints for adjusting the height of the tabletop are spaced at intervals of 62mm. There are ten joints in total. You can easily adjust the installation height, order, or quantity of the tabletops to suit your needs.

The table is suitable for both standing work as an addition to a regular table and as a separate desk.

The maximum overall dimensions:

• Height - 765mm
• Width - 720mm
• Depth - 540mm

Before manufacturing, pay attention to some points!

• The drawings are designed for a plywood thickness of 18mm.
• Although I added clearances for simplicity of manufacturing and assembly, you may need to sand the parts after cutting.
• If you wish, you can easily make changes to suit your preferences.

Send feedback, wishes, or requests to artwoodbox@gmail.com.

Peaceful skies!

Sincerely,

Oleksiy.
