No.199 Drawing for the manufacture of plywood chairs using CNC

Drawings in dxf pdf format for making a chair with plywood armrests.

Difficulty - medium+

The archive contains drawings for a CNC machine for manufacturing chair parts from 18mm plywood.

Before cutting, it is necessary to check the actual thickness of the exposed plywood sheet and, if necessary, scale the drawing to the desired size.

After CNC cutting, all parts must be sanded and the joints checked.

The corresponding parts must be glued together with wood glue in pairs using centering dowels with a diameter of 8mm.

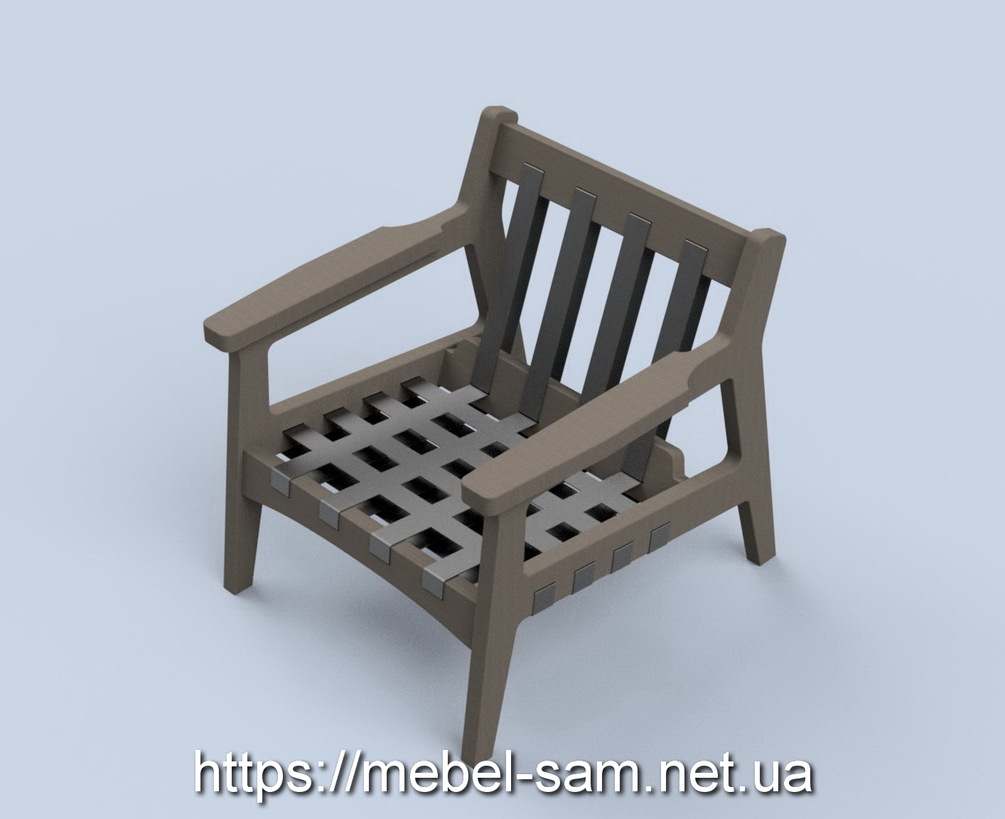

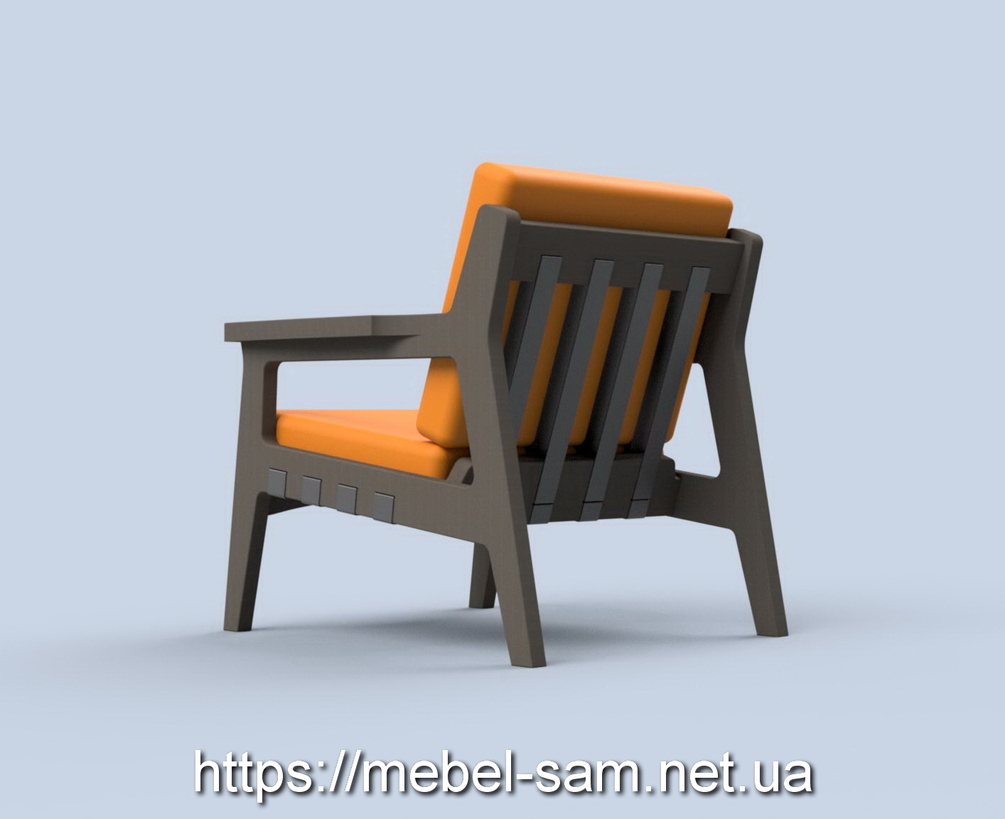

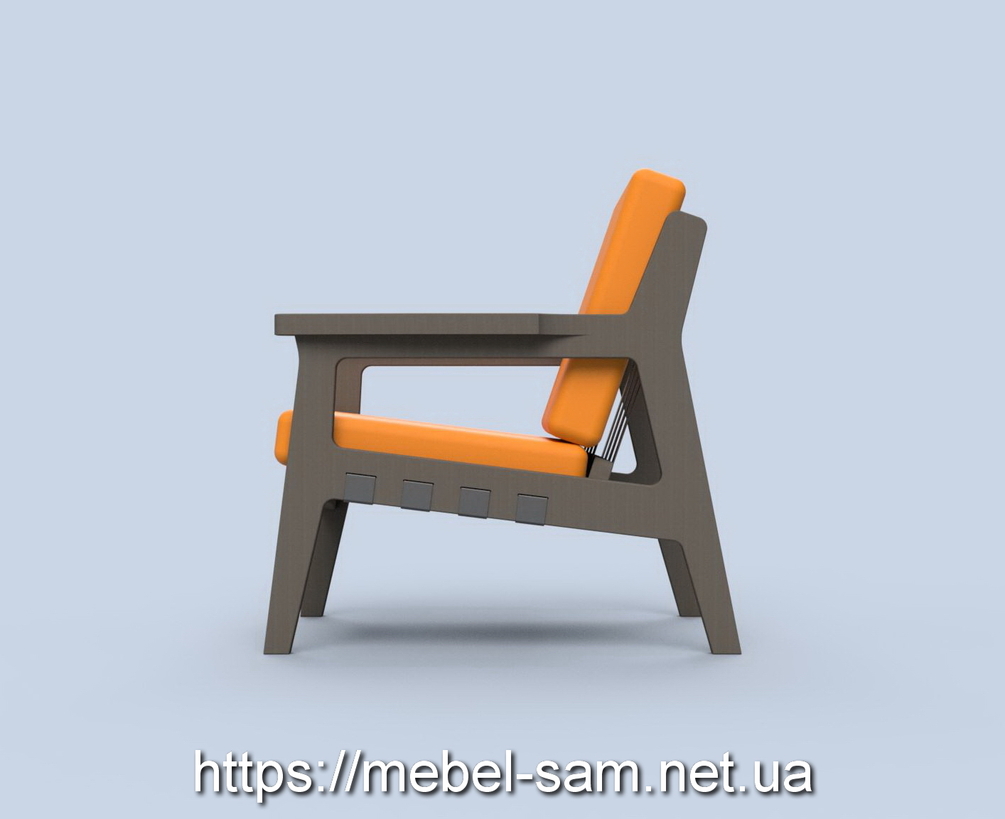

The basis for the seat and backrest - straps 50mm wide.

For manufacturing, you need a sling 50mm wide and about 20 meters long

approximate dimensions

• back height - 750mm
• seat height - 425mm
• total width - 772mm
• total depth - 830mm
